In modern industrial filtration systems, choosing the right filter cartridge is critical to ensuring product quality, operational efficiency, and cost control. Among various filtration options, pleated filter cartridges stand out due to their high efficiency, large filtration area, and long service life.

This guide will walk you through everything you need to know about pleated filter cartridges, including types, applications, selection tips, and how they compare with other filter solutions.

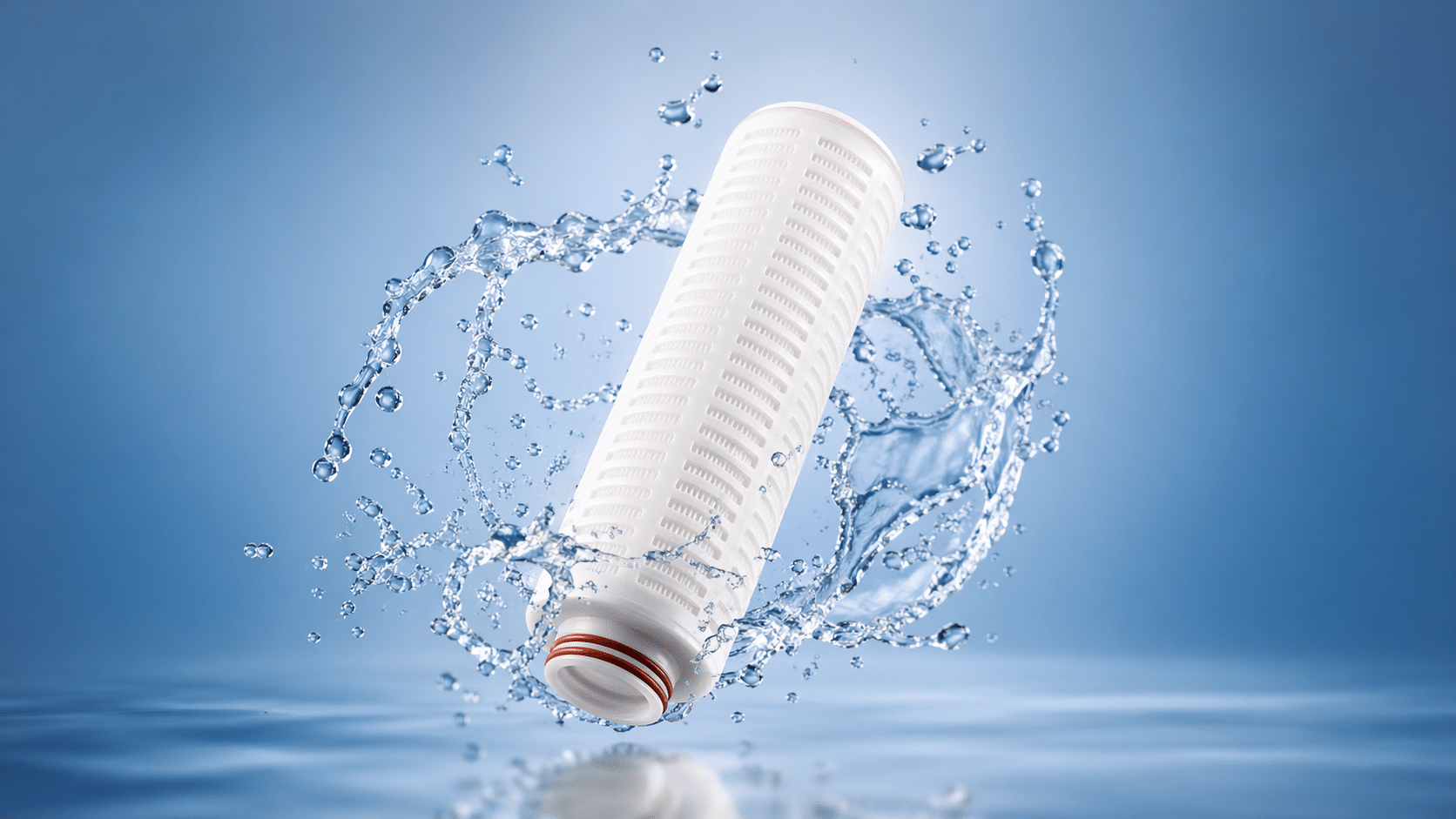

What is a Pleated Filter Cartridge

A pleated filter cartridge is a type of surface filtration element made by folding (pleating) filter media to increase the effective filtration area within a compact structure. This design allows for higher dirt-holding capacity and improved flow rates compared to traditional depth filters.

The cartridge typically consists of:

• Filter media (PP, PES, PTFE, Nylon)
• Inner core for support
• Outer cage for protection
• End caps for sealing

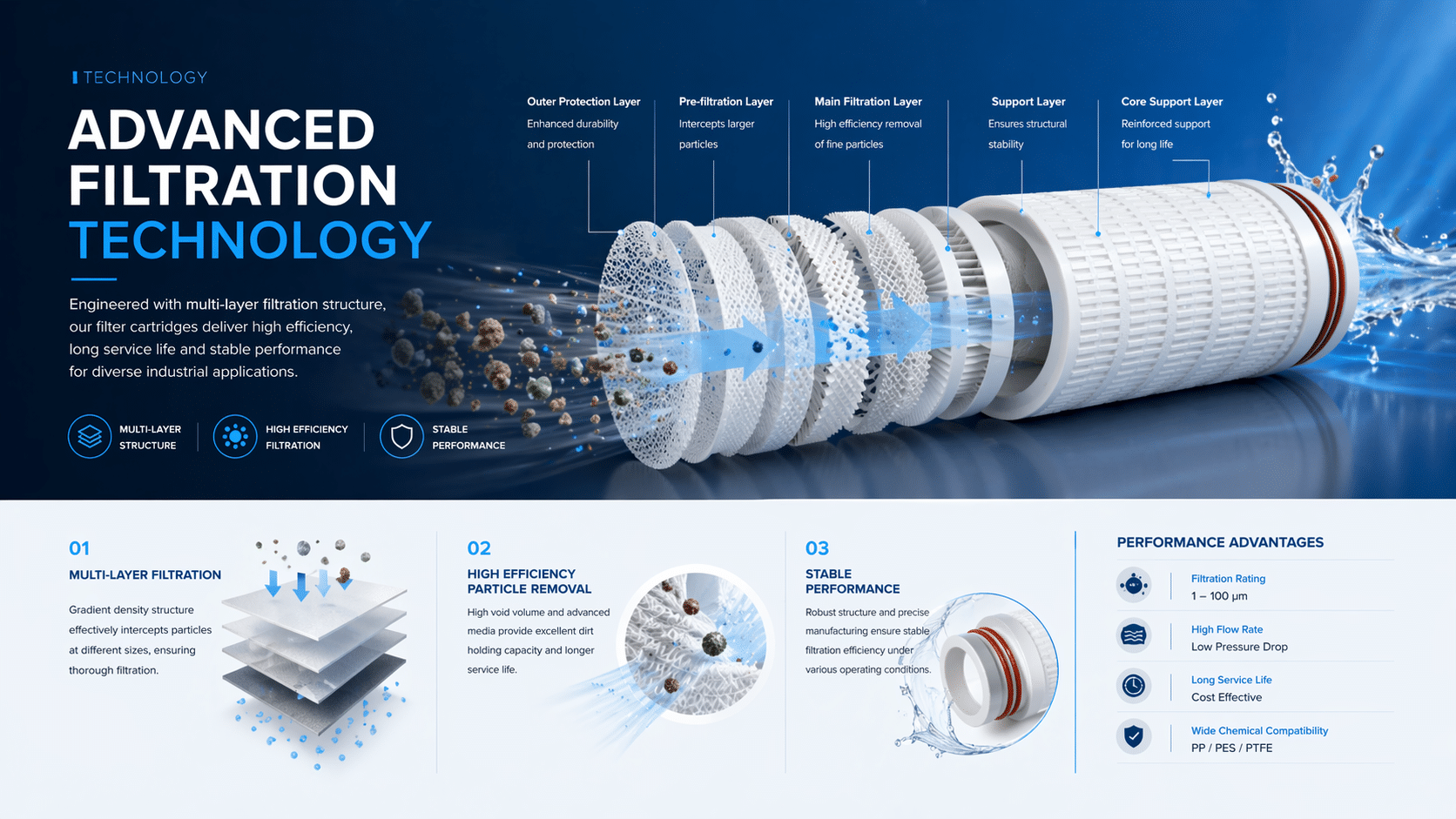

How It Works

Pleated filter cartridges operate using surface filtration. Particles are captured on the surface of the filter media rather than being trapped deep inside, which makes them more efficient and easier to clean in certain applications.

Key Features and Advantages of Pleated Filter Cartridges

Pleated filter cartridges are widely used across industries due to several performance advantages:

1. High Filtration Efficiency

They can achieve filtration ratings from 0.1 to 50 microns, making them suitable for both fine and coarse filtration.

2. Large Filtration Area

The pleated structure significantly increases the surface area, resulting in:

• Higher flow rates
• Lower pressure drop
• Longer service life

3. Cost-Effective Operation

Although initial costs may be higher than some alternatives, their longer lifespan reduces replacement frequency and labor costs.

4. Wide Chemical Compatibility

Available in multiple materials such as polypropylene (PP), polyethersulfone (PES), PTFE, and nylon.

5. Reusability (in some cases)

Certain pleated filters can be cleaned and reused, further reducing operational costs.

Types of Pleated Filter Cartridges

Understanding the different types helps you choose the right solution for your application.

By Material

PP (Polypropylene) Pleated Filter Cartridges

• Most cost-effective
• Suitable for general water filtration
• Good chemical resistance

PES (Polyethersulfone) Pleated Filter Cartridges

• High precision filtration
• Ideal for pharmaceuticals and food processing
• Low protein binding

PTFE Pleated Filter Cartridges

• Excellent chemical resistance
• Suitable for aggressive solvents and gases

Nylon Pleated Filter Cartridges

• Strong mechanical strength
• Good for organic solvents

By Filtration Rating

• 0.1–0.45 micron: Ultra-fine filtration (pharma, electronics)
• 1 micron: Fine filtration
• 5–50 micron: Pre-filtration or general industrial use

By Structure

Standard Pleated

Used in most industrial applications.

High Flow Pleated

Designed for high-flow systems, reducing the number of cartridges needed.

Applications Across Industries

Pleated filter cartridges are widely used in various industries:

Water Treatment

Removal of suspended solids, sediments, and fine particles.

Food & Beverage

Filtration of beverages, syrups, and process water.

Pharmaceuticals

Sterile filtration and critical process applications.

Chemical Industry

Handling corrosive liquids and solvents.

Electronics

Ultra-pure water filtration for semiconductor manufacturing.

Oil & Gas

Pre-filtration and process fluid purification.

Pleated Filter Cartridge vs Other Filter Types

Choosing the right filtration solution often involves comparing alternatives.

Pleated vs Melt Blown Filter Cartridge

👉 Pleated filters offer better performance and longer lifespan.

Pleated vs String Wound Filter Cartridge

👉 Pleated cartridges are preferred for precision filtration.

How to Choose the Right Pleated Filter Cartridge

Selecting the right filter is critical for system performance.

Consider the following factors:

1. Flow Rate

Ensure the cartridge can handle system flow requirements.

2. Micron Rating

Choose based on required filtration precision.

3. Chemical Compatibility

Match filter material with the fluid being processed.

4. Operating Temperature

Ensure material stability under working conditions.

5. Pressure Requirements

Check maximum pressure ratings.

6. Filter Housing Compatibility

Confirm size and connection type.

👉 Not sure which filter is right? Our engineers can help you select the optimal solution.

Technical Specifications

Common Problems and Solutions (FAQ)

How often should I replace a pleated filter cartridge?

Replacement depends on contamination level and operating conditions.

Can pleated filters be cleaned?

Some types can be rinsed or chemically cleaned.

Why does pressure drop increase?

Due to clogging from accumulated particles.

What micron rating should I choose?

It depends on your filtration goal—contact us for guidance.

Why Choose Our Pleated Filter Cartridges

We provide high-performance filtration solutions tailored to industrial needs:

• Advanced manufacturing technology
• Strict quality control (ISO standards)
• Wide range of materials and specifications
• Customization support (OEM/ODM)
• Fast delivery and global shipping

👉 Our products are trusted by customers across multiple industries.

Get a Quote for Pleated Filter Cartridge

Choosing the right filtration solution can significantly improve efficiency and reduce costs.

👉 Contact us today to get:

• Free technical consultation
• Customized product recommendations
• Fast and competitive quotations
