String Wound Filter Cartridge: Reliable Depth Filtration for Industrial and Commercial Water Treatment

When a filtration system needs dependable sediment removal, stable flow performance, and a cost-effective cartridge replacement solution, a String Wound Filter Cartridge remains one of the most practical choices. Designed with tightly wound yarn around a central core, this type of depth filter captures suspended solids, rust, sand, silt, scale, and other particles throughout the filter matrix rather than only on the surface.

For industrial water treatment, pre-filtration, chemical processing, food and beverage production, RO system protection, and general process filtration, INCE Filtration provides string wound cartridges engineered for consistent performance, broad chemical compatibility, and flexible customization.

Whether you are replacing standard sediment cartridges or building a filtration system for demanding operating conditions, choosing the right wound cartridge can improve system stability, reduce maintenance frequency, and protect downstream equipment.

What Is a String Wound Filter Cartridge?

A String Wound Filter Cartridge is a depth filtration element made by winding yarn around a perforated inner core in a controlled pattern. The winding structure creates a graded density design: the outer layers are more open to capture larger particles, while the inner layers become tighter to retain finer contaminants.

This structure allows contaminants to be trapped throughout the cartridge depth, helping the filter hold more dirt before reaching its pressure-drop limit. Many current product pages in the market describe string wound cartridges as effective sediment filters for removing dirt, rust, sand, silt, and suspended particles from water or process fluids.

Unlike simple surface filtration, depth filtration provides a larger contaminant-holding area. This makes string wound cartridges especially useful where the feed liquid contains a higher sediment load or where a longer service life is required.

Why Choose INCE Filtration String Wound Filter Cartridges?

INCE Filtration focuses on practical filtration performance, stable manufacturing quality, and application-based cartridge selection. Our string wound cartridges are designed for users who need filtration that is efficient, economical, and adaptable to different process environments.

High Dirt-Holding Capacity

The graded winding structure allows particles to be captured in different layers of the cartridge. Larger particles are retained in the outer zone, while smaller particles are captured deeper inside the filter body. This depth-loading behavior helps extend cartridge life and reduces frequent replacement in many sediment-heavy applications.

Stable Flow and Low Initial Pressure Drop

A properly manufactured string wound cartridge provides balanced porosity and flow channels. This helps maintain smooth liquid flow while still removing target particles. For water treatment systems, pre-filtration lines, and process equipment, stable flow is essential for reducing pump load and maintaining production efficiency.

Wide Material Compatibility

Different liquids require different filter materials. INCE Filtration offers cartridge options with yarn and core combinations suitable for various operating conditions, including general water filtration, chemical processing, and high-temperature or aggressive fluid applications.

Common media and core options include:

• Polypropylene yarn with polypropylene core
• Cotton yarn with stainless steel or tin-plated steel core
• Glass fiber yarn for higher-temperature or chemical-resistant applications
• Polyester or nylon options for selected process conditions

This flexibility is one reason string wound cartridges remain popular across industrial sectors. Pall also notes that string-wound filters can offer broad media compatibility and economical particulate removal.

Cost-Effective Sediment Filtration

For many users, the main advantage of a String Wound Filter Cartridge is its balance of performance and cost. It provides reliable nominal filtration without the higher cost of some pleated or membrane cartridges. In many systems, wound cartridges are used as pre-filters to protect finer downstream filters, pumps, valves, nozzles, and RO membranes.

Customizable for Different Systems

INCE Filtration can supply cartridges in different lengths, diameters, micron ratings, end-cap styles, and material combinations. This makes it easier for OEMs, distributors, water treatment contractors, and industrial users to match cartridges with existing housings and process requirements.

How a String Wound Filter Cartridge Works

The working principle is simple but effective. Contaminated liquid flows from the outside of the cartridge toward the inner core. As the liquid passes through the wound yarn layers, particles are trapped in the filter matrix.

The cartridge structure usually contains three functional zones:

Outer Layer: Large Particle Capture

The outer winding layer is relatively open. It captures larger particles such as sand, rust flakes, scale, and coarse suspended solids. This prevents the inner layers from blocking too quickly.

Middle Layer: Intermediate Sediment Removal

The middle zone captures medium-sized particles. This layer plays an important role in maintaining stable flow while increasing dirt-holding capacity.

Inner Layer: Finer Particle Retention

The inner winding layer is denser and captures finer particles according to the selected micron rating. After passing through this layer, the filtered liquid exits through the central core.

This graded-density principle is widely referenced in the industry as a key advantage of wound cartridge design. Some manufacturers describe the structure as honeycomb-like or diamond-pattern wound, helping achieve depth filtration and higher dirt retention.

Main Applications of String Wound Filter Cartridges

A String Wound Filter Cartridge can be used in many industries where sediment, particles, or suspended solids must be removed from liquid streams.

Industrial Water Treatment

Industrial water often contains rust, sand, pipe scale, and other suspended solids. String wound cartridges are commonly installed in pre-filtration systems to protect downstream equipment and improve water quality before further treatment.

Typical uses include:

• Boiler feed water pre-filtration
• Cooling water filtration
• Process water treatment
• RO system pre-filtration
• Groundwater and well water filtration

Reverse Osmosis Pre-Filtration

RO membranes are sensitive to suspended solids. A wound cartridge installed before an RO system helps reduce sediment load, lower fouling risk, and extend membrane service life. For facilities operating continuous RO systems, this simple pre-filtration step can reduce downtime and maintenance costs.

Food and Beverage Processing

In food and beverage production, pre-filtration is often required before finer polishing or membrane filtration. Polypropylene or cotton wound cartridges can be used for sediment reduction in suitable applications, depending on compatibility and regulatory requirements.

Common applications include:

• Ingredient water filtration
• Beverage process water
• Syrup and liquid pre-filtration
• General plant water treatment

Chemical Processing

Chemical plants need filters that can handle different levels of acidity, alkalinity, temperature, and solvent compatibility. By selecting the correct yarn and core material, string wound cartridges can be used for filtering chemical solutions, plating baths, acids, alkalis, and process liquids.

Electroplating and Surface Treatment

Electroplating baths can accumulate suspended solids, metal particles, and process contaminants. String wound cartridges help maintain bath cleanliness, improve surface finish consistency, and reduce defects caused by particulate contamination.

Oil, Gas, and Petrochemical Filtration

For selected oil and hydrocarbon-related applications, wound cartridges can remove solid contaminants before finer filtration stages. Material selection is especially important in these environments, and INCE Filtration can help recommend suitable cartridge configurations based on fluid type and operating conditions.

Paints, Inks, and Coatings

Particles in coatings and inks can affect finish quality, spray performance, and product consistency. String wound cartridges can be used as economical pre-filters to remove unwanted solids before final processing or packaging.

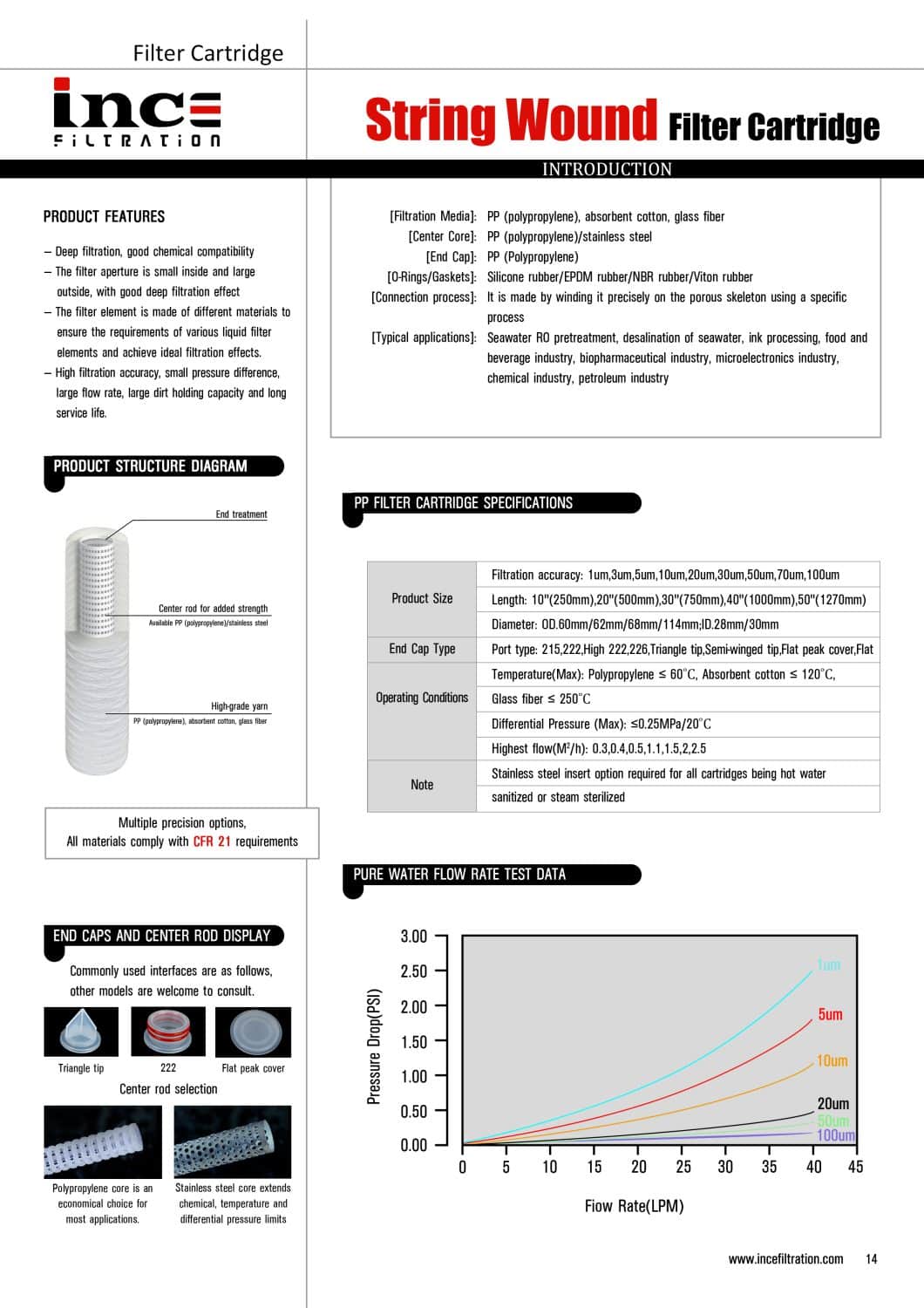

Technical Specifications

INCE Filtration offers customizable String Wound Filter Cartridge options to meet different system requirements.

Available Micron Ratings

Common nominal micron ratings include:

• 0.5 micron
• 1 micron
• 3 micron
• 5 micron
• 10 micron
• 20 micron
• 25 micron
• 50 micron
• 75 micron
• 100 micron

The correct micron rating depends on the target particle size, liquid quality, flow rate, and downstream equipment requirements. For RO pre-filtration, 5 micron is commonly selected, while coarser ratings may be used for heavy sediment removal.

Cartridge Lengths

Common lengths include:

• 5 inches
• 10 inches
• 20 inches
• 30 inches
• 40 inches
• Custom lengths available on request

Watts, for example, lists string wound cartridge lengths including approximately 9-3/4, 9-7/8, 20, 30, and 40 inches, showing that multiple standard lengths are common in the market.

Outer Diameter Options

Typical cartridge diameters include:

• Standard 2.5 inch OD
• Jumbo / Big Blue 4.5 inch OD
• Customized dimensions for special housings

Filter Media Options

Available media options may include:

• Polypropylene
• Cotton
• Glass fiber
• Polyester
• Nylon

Polypropylene is often selected for general water and chemical compatibility. Cotton may be used in selected oil or high-temperature applications. Glass fiber can be considered for higher temperature or more aggressive chemical conditions.

Core Materials

Common core materials include:

• Polypropylene
• Stainless steel
• Tin-plated steel
• Glass-filled polypropylene

The core must be selected according to temperature, pressure, and chemical compatibility requirements.

End Configurations

INCE Filtration can provide common end styles to match different cartridge housings, such as:

• DOE: Double Open End
• SOE: Single Open End
• Flat gasket
• Fin end
• Spring end
• 222 adapter
• 226 adapter

Operating Conditions

Typical operating specifications depend on the selected media and core. General parameters may include:

• Nominal filtration efficiency
• High dirt-holding capacity
• Low initial pressure drop
• Broad pH compatibility depending on material
• Temperature resistance based on media/core combination
• Custom pressure-resistance options available

For exact operating limits, INCE Filtration recommends confirming fluid type, temperature, pressure, flow rate, and filtration target before selecting a cartridge.

String Wound Filter Cartridge vs. Melt Blown Filter Cartridge

Many buyers compare string wound cartridges with melt blown cartridges. Both are widely used for sediment filtration, but they are not identical.

String Wound Cartridge

A string wound cartridge is made by winding yarn around a core. It provides strong depth filtration and is well suited for high sediment load, variable particle sizes, and applications requiring different media options.

Best for:

• High dirt load
• Industrial water treatment
• Chemical compatibility needs
• Applications requiring cotton, glass fiber, nylon, or other yarn options
• Longer service life in coarse-to-medium sediment conditions

Melt Blown Cartridge

A melt blown cartridge is usually made from thermally bonded polypropylene fibers. It provides gradient depth filtration and is often used in general water treatment, RO pre-filtration, and cost-sensitive applications.

Best for:

• General sediment removal
• Clean water pre-filtration
• Uniform polypropylene construction
• Disposable high-volume applications

The best choice depends on feed quality, chemical compatibility, temperature, flow rate, and replacement cost targets.

How to Choose the Right String Wound Filter Cartridge

Selecting the right cartridge is not only about micron rating. A filter that is too fine may block quickly, while a filter that is too coarse may fail to protect downstream equipment.

1. Identify the Contaminant Type

Check whether the liquid contains sand, rust, scale, mud, fibers, metal particles, or chemical precipitates. Larger particles may require a coarser pre-filter before finer filtration.

2. Choose the Correct Micron Rating

For heavy sediment, 20–50 micron may be suitable as the first stage. For RO protection or finer pre-filtration, 1–5 micron may be more appropriate.

3. Confirm Fluid Compatibility

The filter media and core must be compatible with the liquid. For water, polypropylene is often a practical choice. For special chemicals, solvents, oils, or high-temperature liquids, material selection should be reviewed carefully.

4. Match Cartridge Size and End Style

Confirm length, outside diameter, inside diameter, gasket type, and end connection. A correct mechanical fit prevents bypass and ensures stable filtration performance.

5. Consider Flow Rate and Pressure Drop

A cartridge must support the required flow without excessive pressure drop. In high-flow systems, using larger cartridges or multiple cartridges in parallel may improve performance and service life.

Why Work with INCE Filtration?

INCE Filtration supplies filtration products for industrial, commercial, and OEM customers who need dependable quality and responsive technical support. Our team understands that filtration is not a one-size-fits-all product. A cartridge that works well in clean water may fail quickly in chemical processing, and a cartridge designed for low flow may not be suitable for high-volume industrial systems.

With INCE Filtration, customers receive:

• Multiple micron rating options
• Flexible media and core material selection
• Standard and customized cartridge sizes
• Stable production quality
• OEM and bulk supply support
• Application-based product recommendations
• Competitive pricing for distributors and industrial users

Our goal is to help customers select the right String Wound Filter Cartridge for real operating conditions, not just provide a standard catalog item.

Frequently Asked Questions

What is a String Wound Filter Cartridge used for?

It is used to remove suspended solids, sediment, rust, sand, silt, scale, and other particles from water or process liquids. It is widely used in industrial water treatment, RO pre-filtration, chemical processing, food and beverage production, electroplating, and general process filtration.

Is a string wound cartridge reusable?

Most string wound cartridges are designed as disposable filter elements. Cleaning may remove some surface dirt, but it usually cannot fully restore the internal depth-loading capacity. Replacement is recommended when pressure drop becomes too high or flow decreases significantly.

What micron rating should I choose?

The choice depends on your application. For coarse sediment, 20–50 micron may be suitable. For finer pre-filtration, 1–10 micron is commonly used. For RO pre-filtration, 5 micron is often selected, but actual selection should be based on feed water quality and system design.

What is the advantage of string wound filters?

The main advantages are high dirt-holding capacity, depth filtration, material flexibility, stable flow, and cost-effective sediment removal.

Can INCE Filtration customize string wound cartridges?

Yes. INCE Filtration can provide customized micron ratings, lengths, diameters, media materials, core materials, and end configurations based on customer requirements.

Get a Reliable String Wound Filter Cartridge from INCE Filtration

A high-quality String Wound Filter Cartridge can improve filtration efficiency, protect downstream equipment, reduce maintenance pressure, and lower operating costs. Whether you need cartridges for water treatment, RO pre-filtration, chemical processing, electroplating, food and beverage production, or OEM equipment, INCE Filtration can provide a suitable solution.

Contact INCE Filtration today to discuss your application, request technical specifications, or get a quotation for standard or customized string wound filter cartridges. Our team is ready to help you select the right filter cartridge for your system and budget.
