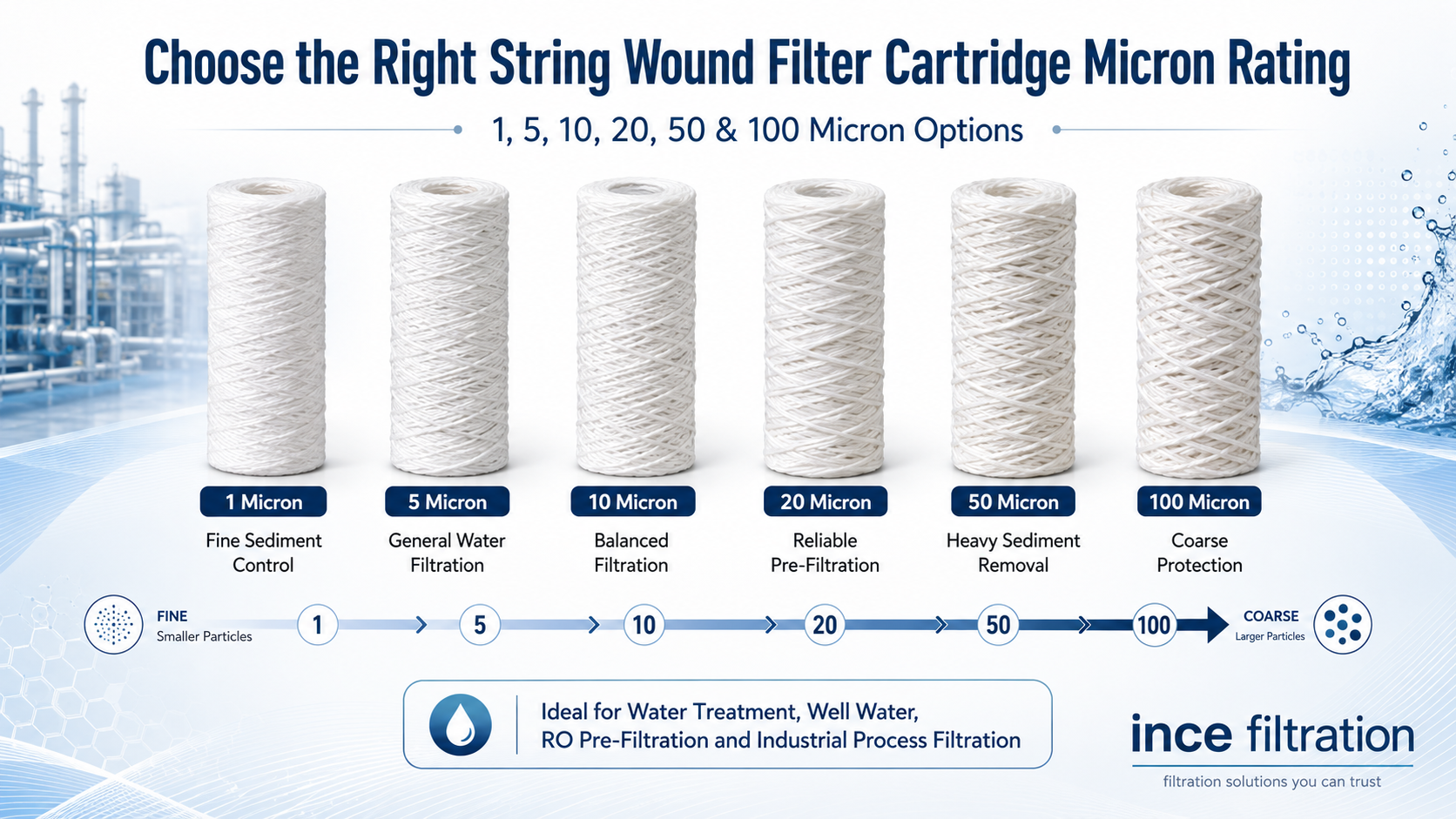

Choosing the Right Micron Rating: 1, 5, 10, 20, 50 and 100 Micron String Wound Filter Cartridges

When a filtration system fails to control sediment, the problem is often not the housing, pump, or pipework. In many cases, it comes down to choosing the wrong micron rating. A 1 micron string wound filter cartridge and a 100 micron string wound filter cartridge may look similar from the outside, but they are designed for very different filtration jobs.

For water treatment, process liquid filtration, well water protection, pre-filtration, and industrial sediment removal, string wound cartridges remain one of the most practical and cost-effective solutions. Their depth filtration structure allows particles to be trapped throughout the cartridge body, not only on the surface. This makes them suitable for applications where dirt loading capacity, stable flow, and reliable sediment retention are important.

At ince filtration, we supply string wound filter cartridges in a wide range of micron ratings, including 1 micron string wound filter cartridge, 5 micron string wound filter cartridge, 10 micron string wound filter cartridge, 20 micron string wound filter cartridge, 50 micron string wound filter cartridge, and 100 micron string wound filter cartridge options. This guide explains how each rating works, where it should be used, and how to select the right cartridge for your system.

What Is a String Wound Filter Cartridge?

A string wound filter cartridge is a depth filter made by winding yarn around a central core in a controlled pattern. The winding structure creates a graded pore design: larger particles are captured in the outer layers, while finer particles are retained deeper inside the cartridge.

This structure gives string wound cartridges several advantages:

• High dirt holding capacity
• Good flow performance
• Stable filtration under pressure
• Cost-effective sediment removal
• Compatibility with many liquids, depending on material selection
• Multiple micron ratings for staged filtration systems

Common materials include polypropylene, cotton, glass fiber, and other specialty yarns. Polypropylene string wound cartridges are especially popular because they offer good chemical resistance, low fiber release, and reliable performance in water and many industrial liquids.

Why Micron Rating Matters

A micron is a unit of measurement used to describe particle size. One micron equals one-thousandth of a millimeter. In filtration, the micron rating tells you the approximate size of particles the cartridge is designed to capture.

The smaller the micron rating, the finer the filtration. However, finer is not always better. A 1 micron cartridge can remove very fine sediment, but it may also create higher pressure drop and shorter service life if the incoming water contains heavy sand or sludge. A 100 micron cartridge allows higher flow and catches larger particles, but it will not remove fine rust or silt.

That is why choosing the correct micron rating is essential. The right cartridge should balance filtration accuracy, flow rate, service life, and operating cost.

1 Micron String Wound Filter Cartridge: Fine Sediment Control

A 1 micron string wound filter cartridge is designed for fine particle removal. It is often used as a polishing filter or as a final sediment protection stage before sensitive equipment.

Best Applications

A 1 micron cartridge is suitable for:

• Fine sediment removal
• RO pre-filtration
• Laboratory water systems
• Food and beverage process water
• Fine rust and silt reduction
• Protection of membranes, nozzles, and precision components

Because of its fine filtration level, a 1 micron cartridge should normally be used after a coarser pre-filter. For example, a 20 micron or 10 micron cartridge can remove heavier sediment first, allowing the 1 micron cartridge to last longer and perform more consistently.

When to Choose 1 Micron

Choose a 1 micron string wound filter cartridge when your system requires cleaner output water and the upstream sediment load is already controlled. It is not usually the best first-stage filter for dirty well water or high-sediment industrial liquids.

5 Micron String Wound Filter Cartridge: Popular Choice for Water Filtration

A 5 micron string wound filter cartridge is one of the most widely used options in residential, commercial, and industrial water filtration. It offers a good balance between fine sediment removal and practical flow performance.

Best Applications

A 5 micron cartridge is commonly used for:

• Whole house sediment filtration
• Well water filtration
• Municipal water pre-filtration
• RO system protection
• Beverage and food processing
• Cooling water and process water
• Rust, sand, dirt, and silt reduction

Many systems use 5 micron cartridges because they can capture fine visible particles without restricting flow as much as ultra-fine cartridges.

When to Choose 5 Micron

Choose a 5 micron string wound filter cartridge when you need reliable sediment control but still want reasonable service life. It is often a strong choice for homes, factories, and commercial systems where water quality must be improved before carbon filters, softeners, UV systems, or RO membranes.

10 Micron String Wound Filter Cartridge: Balanced Filtration for General Use

A 10 micron string wound filter cartridge is a practical general-purpose option. It removes medium-to-fine sediment while maintaining good water flow.

Best Applications

A 10 micron cartridge works well for:

• General sediment filtration
• Well water with moderate particles
• Pre-filtration before 5 micron cartridges
• Industrial process water
• Cooling tower side-stream filtration
• Equipment protection
• Light rust and suspended solids removal

This micron rating is often used as a first or intermediate stage in multi-cartridge systems.

When to Choose 10 Micron

Choose a 10 micron string wound filter cartridge when the incoming liquid has moderate sediment and you want to prevent fast clogging of finer filters. For many users, 10 micron is a smart starting point because it gives a strong balance between protection and cartridge life.

20 Micron String Wound Filter Cartridge: Reliable Pre-Filtration

A 20 micron string wound filter cartridge is designed for larger sediment particles and is commonly used as a pre-filter. It helps protect downstream cartridges and equipment from heavy particle loading.

Best Applications

A 20 micron cartridge is suitable for:

• First-stage filtration
• Heavy sediment well water
• Industrial liquid pre-filtration
• Pump and valve protection
• Cooling water filtration
• Process water with visible particles
• Pre-filtering before 10 micron or 5 micron cartridges

Because it is less restrictive than finer cartridges, it can handle higher dirt loads and maintain better flow in challenging applications.

When to Choose 20 Micron

Choose a 20 micron string wound filter cartridge when your water or liquid contains visible sand, rust flakes, pipe scale, or heavier suspended solids. It is also a good choice when a 5 micron cartridge clogs too quickly.

50 Micron String Wound Filter Cartridge: Heavy Sediment Removal

A 50 micron string wound filter cartridge is used for coarse sediment removal. It is designed to capture larger particles while allowing strong flow through the system.

Best Applications

A 50 micron cartridge is often used for:

• Coarse sediment filtration
• Agricultural water systems
• Industrial pre-filtration
• Large particle removal
• Protection before finer filters
• Reclaimed water pre-treatment
• High-flow sediment control

This rating is especially useful where the goal is not final water polishing, but protection of downstream equipment and extension of finer filter life.

When to Choose 50 Micron

Choose a 50 micron string wound filter cartridge when the fluid contains large particles and you need a durable first-stage filter. It is a good option for systems where finer cartridges clog rapidly due to sand, debris, or heavy suspended solids.

100 Micron String Wound Filter Cartridge: Coarse Protection for High Sediment Loads

A 100 micron string wound filter cartridge is used for very coarse filtration. It removes larger debris and protects pumps, valves, spray nozzles, and downstream filtration systems.

Best Applications

A 100 micron cartridge is suitable for:

• First-stage coarse filtration
• Large debris removal
• Industrial process protection
• Irrigation and agricultural water
• Pre-filtration before 50, 20, or 10 micron cartridges
• High-flow systems with heavy solids
• Equipment protection in rough filtration conditions

A 100 micron cartridge should not be expected to produce fine, clear water by itself. Its job is to remove larger particles and reduce the burden on downstream filters.

When to Choose 100 Micron

Choose a 100 micron string wound filter cartridge when the main problem is large sediment, sand, pipe scale, or coarse debris. It is often the first cartridge in a staged filtration system.

How to Choose Between 1, 5, 10, 20, 50 and 100 Micron Ratings

The best micron rating depends on your water quality, target filtration result, flow requirement, and system design.

For Fine Filtration

Use:

• 1 micron string wound filter cartridge
• 5 micron string wound filter cartridge

These are suitable when the water has already passed through a coarser filter and you need fine sediment reduction.

For General Sediment Filtration

Use:

• 5 micron string wound filter cartridge
• 10 micron string wound filter cartridge
• 20 micron string wound filter cartridge

These ratings are suitable for common water treatment and process filtration applications.

For Coarse Pre-Filtration

Use:

• 50 micron string wound filter cartridge
• 100 micron string wound filter cartridge

These are best for heavy sediment, high-flow systems, and protecting downstream filters.

Recommended Staged Filtration Combinations

For systems with changing or heavy sediment loads, staged filtration is often better than relying on one cartridge.

Example 1: Well Water Filtration

A common setup may include:

• 50 micron or 20 micron first stage
• 10 micron second stage
• 5 micron final sediment stage

This helps control sand and rust while extending the life of the finer cartridge.

Example 2: RO Pre-Filtration

For reverse osmosis protection:

• 10 micron or 5 micron sediment cartridge
• Carbon filter
• 1 micron polishing cartridge if needed

The goal is to reduce particulate loading before the membrane.

Example 3: Industrial Process Water

For industrial systems:

• 100 micron first stage
• 50 micron second stage
• 20 micron or 10 micron final stage

This structure is useful when process liquid contains heavy suspended solids.

Key Product Features from ince filtration

At ince filtration, our string wound filter cartridges are designed for stable performance in demanding filtration environments.

High Dirt Holding Capacity

The depth structure captures particles throughout the cartridge body, allowing longer service life compared with simple surface filtration.

Controlled Winding Pattern

A uniform winding pattern helps maintain consistent pore size distribution and stable filtration performance.

Multiple Micron Ratings

We supply 1, 5, 10, 20, 50, and 100 micron options to match different filtration stages and application requirements.

Custom Material Options

Depending on the liquid and operating environment, cartridges can be made with polypropylene, cotton, or other media and core materials.

Standard and Custom Sizes

Common cartridge lengths include 10″, 20″, 30″, and 40″, with options available for different housings and industrial filter vessels.

Cost-Effective Replacement

String wound cartridges provide dependable sediment filtration at a competitive cost, making them suitable for both OEM supply and maintenance replacement programs.

Common Applications

String wound filter cartridges from ince filtration can be used in many industries, including:

• Residential water filtration
• Whole house water systems
• Well water treatment
• Food and beverage processing
• Chemical processing
• Plating solutions
• Cooling water filtration
• RO pre-treatment
• Petrochemical filtration
• Paints, inks, and coatings
• Pharmaceutical pre-filtration
• Industrial wastewater treatment

The wide choice of micron ratings makes them suitable for both coarse pre-filtration and fine sediment removal.

Technical Selection Guide

When selecting a cartridge, consider the following factors:

1. Particle Size

If the particles are large and visible, start with 50 or 100 micron. If the particles are fine silt or rust, consider 5 or 10 micron. For very fine polishing, choose 1 micron.

2. Flow Rate

Finer cartridges usually create more resistance. If your system needs high flow, avoid choosing a micron rating that is too fine for the first stage.

3. Sediment Load

High sediment load requires a coarser pre-filter. Using a 1 micron cartridge as the first filter in dirty water may cause quick clogging.

4. Liquid Compatibility

Polypropylene is widely used for water and many chemicals, but special applications may require cotton, glass fiber, or stainless steel cores.

5. Operating Temperature

Check the temperature rating of the cartridge material before use in hot water or industrial liquids.

6. Filter Housing Size

Make sure the cartridge length, outer diameter, inner diameter, and end configuration match your filter housing.

Why Work with ince filtration?

Choosing the right string wound filter cartridge is not only about micron rating. It is also about manufacturing quality, material consistency, and application support.

ince filtration provides practical filtration solutions for distributors, OEM customers, water treatment companies, and industrial users. Whether you need a 1 micron cartridge for fine polishing or a 100 micron cartridge for coarse pre-filtration, we can help you select the right specification for your system.

Our advantages include:

• Wide micron range
• Stable product quality
• Custom sizes and materials
• OEM and bulk supply support
• Application-based recommendations
• Competitive pricing for global buyers

Conclusion: Select the Right Micron Rating for Better Filtration Results

A string wound filter cartridge is a simple product, but the correct micron rating makes a major difference. A 1 micron string wound filter cartridge is ideal for fine filtration. A 5 micron string wound filter cartridge is a popular choice for general water treatment. A 10 micron string wound filter cartridge offers balanced sediment control. A 20 micron string wound filter cartridge works well as a pre-filter. A 50 micron string wound filter cartridge handles coarse sediment, while a 100 micron string wound filter cartridge provides strong first-stage protection in high-load systems.

For the best result, match the cartridge to your water quality, flow rate, and filtration goal. In many systems, staged filtration delivers longer service life and more stable performance.

Looking for reliable string wound filter cartridges for your project or business? Contact ince filtration today to discuss your required micron rating, cartridge size, material, and order quantity. Our team will help you choose the right filtration solution and provide a fast quotation for your application.
